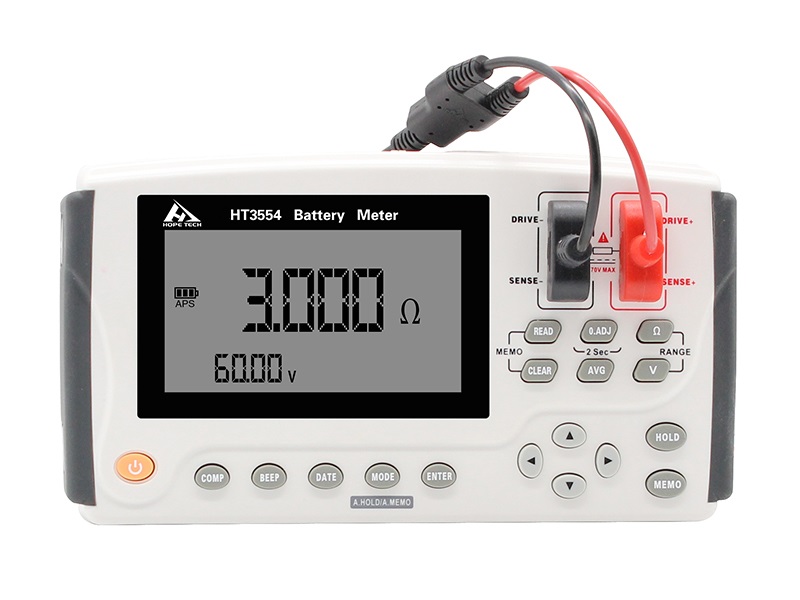

HT3554 Series Handheld Battery Tester
ht3554-series-handheld-battery-tester
Overview
The HT3554 portable battery tester is designed for large current and strong anti-interference to provide fast, complete and accurate diagnosis in internal resistance and voltage for backup UPS batteries and lead-acid batteries. Without stopping the instrument, HT3554 can carry out UPS online measurement and rapid diagnosis of deterioration of the batteries, much increasing the test efficiency. The built-in automatic data storage function can store up to 2400 sets of data and upgraded version of 4800 groups.
Powered of lithium battery and dry battery, HT3554 can still work in the harsh field and air transport limited areas to facilitate the use of dry-cell battery.
Features
- Special for online measurement for UPS batteries and fuel cell stack
- High stability, high resolution design, the highest voltage resolution 0.1mV, and internal resistance resolution 0.001mΩ
- Excellent anti-interference performance. When the instrument receives back EMF shock, it will automatically cut off the test loop.
- HT3554 Use the latest anti-jamming technology to effectively suppress 1/f noise
Application
- Inspectionof high-voltage battery pack and battery module
- High-speed mass production inspection of various batteries
- For large, medium and small (low impedance) component inspection and high-volume production inspection
- Special fuel cell stack inspection
- Research and development measurement for batteries
- Simultaneously check internal resistance (IR) and battery voltage (OCV) at high speed
- Fit for various types of battery in the market such as:lead-acid batteries, nickel-metal hydride batteries, lithium batteries, nickel-chromium batteries, lithium batteries
Specification
| Model | HT3554/CHT3554 |
| Display | 4.3-inch TFT-LCD display (CHT3554 is white and black VFD display) |
| Measurement items | AC resistance ACR, DC voltage DCV, temperature |
| Basic accuracy | Resistance: ±1% |
| Voltage: ± 0.05% | |
| Measurement range | Resistance:0.001mΩ ～ 3.100Ω |
| Voltage:0.0001V～60.000V | |
| Signal source | AC 1kHz, Test current: <150mA |
| Range | Resistance: 3mΩ/30mΩ/300mΩ/3Ω |
| 4 ranges in all | |
| Sampling rate | 1 meas/sec (the average number optional) |
| Temperature | Range: -10°C ~60°C Accuracy: ±1°C |
| Correction | Short-circuit reset for all ranges |
| Comparator | 200 set WARNING/FAIL/PASS sorting |
| Internal data storage | Store up to 2400 set test data |
| Trigger | Internal/auto trigger |
| Interface | USB, EXPORT (port execution hold function) |
| Power supply | 12V/1700mAh lithium battery, AA (LR6) Alkaline Batteries x 8 |
| Maximum rated power | 4VA |
| Dimensions | 208 mm (L) x120mm (W) x 52.5mm (D), without sleeve, weight:0.81kg |
| Accessory | CHT9363B,CHT9371,CHT9348，USB mini cable,charger,0370 belt |
Specification Selection Table
| Model | Resistance accuracy | Resistance range | Resistance accuracy | Voltage range | Performance characteristics | |
| CHT3554 | ±1% | 0.001mΩ-3.100Ω | ±0.05% | 100μV～60V | Special for online measurement for UPS batteries | |
| HT3554 | ||||||
| HT3554A | ±0.5% | 0.0001mΩ-30.000Ω | ±0.02% | 10μV~100V | Handheld design, lighter and smaller, but their accuracy and speed comparable to the benchtop tester. | |
| HT3554B | 10μV~300V | |||||
| HT3554D | 10μV~1000V |
