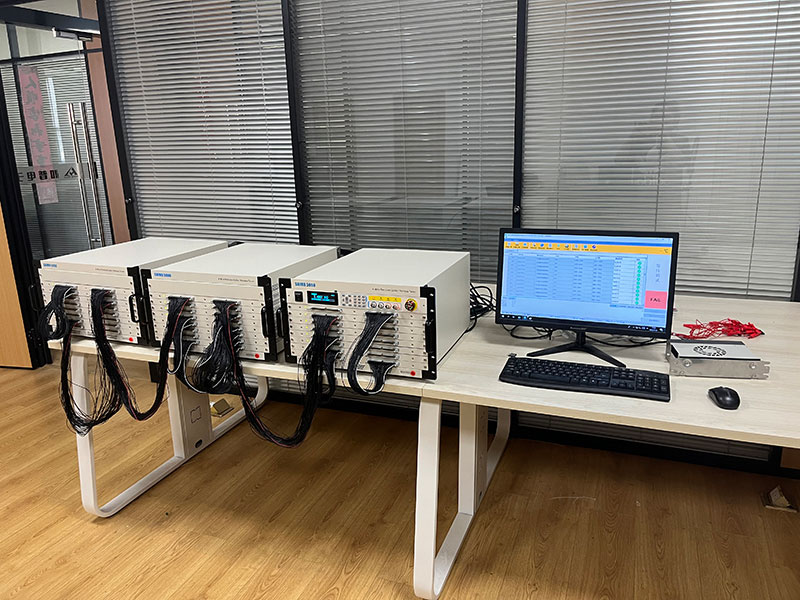

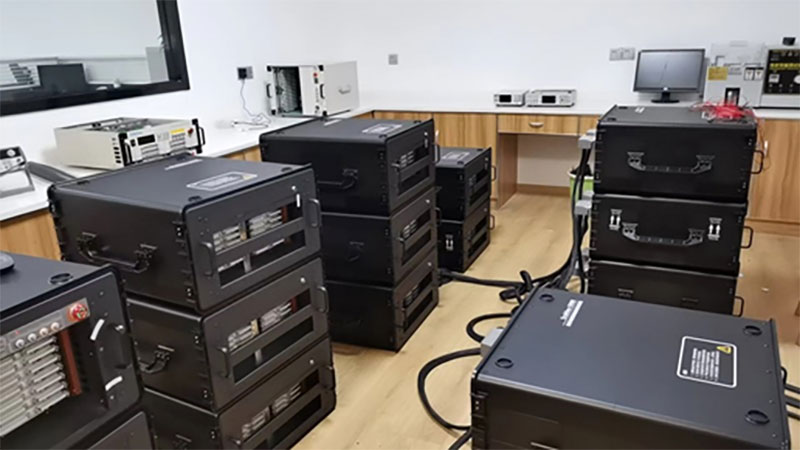

DP5000-D distributed wiring harness testing system of 6144 test points was delivered to the customer for use. We provide users one-stop service and delivery for this system including customized wire harness test testers, fixtures, and operating tables.
DP5000-D, Distributed Wire/Cable Harness Tester
Application
- Distributed harness testing for spacecraft and satellites
- Aircraft distributed wiring harness testing
- Rail transit distributed wiring harness testing
DP5000-D distributed cable harness tester for aviation and aerospace application
Introduction
Aerospace vehicles such as airplanes, rockets, and satellites have complex data communication and sensing systems. Sensors and electrical components located in different positions are connected through various cable harnesses. To ensure the correct operation of multiple devices and systems, it is necessary to use a distributed testing system to detect all electrical signal transmission components at different locations. The DP5000 distributed wiring harness testing system of Hopetech has strong spatial flexibility, and the distribution point chassis only needs to be connected through a single cable. The system has a powerful mixed testing function of two and four wires, supporting users to freely connect wires, and also has an ultra fast self-learning, the tens of thousands of points of self-learning only take one minute, and the network table is automatically established.
Performance and advantages
- Programmable high voltage power supply 0~1500V DC/1000V AC
- ESD element 1mA constant current excitation, test range 0~100V
- LCR test, test frequency 50~10kHz
- Two and four wire mixed testing function, supporting free wiring
- Ultra fast self-learning speed, automatically generating netlists
- Excellent repeatability and high stability
- Modular design for easy maintenance in the later stage
- Distributed cables with a length of up to 200 meters are not limited by space
- Optional expansion device and channel card box, supporting 20480 test points
- Powerful software functionality supports functions such as databases, reports, quality analysis, etc
