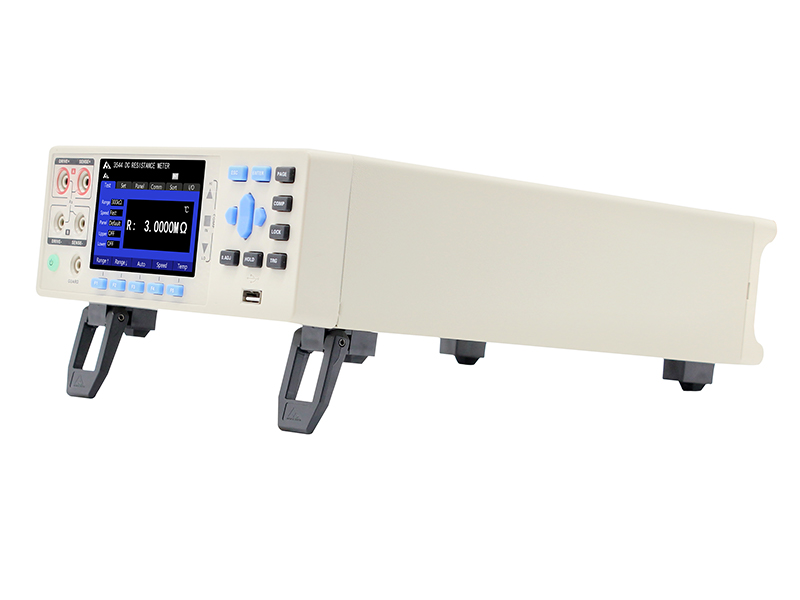

HT3542 High Speed High Precision DC Resistance Meter
high-precision-dc-resistance-meter
Overview
HT3542 DC resistance meter is 5 1/2 and 1.000,000 display, the minimum resolution can measure 0.1μΩ.
Its basic accuracy of 0.02% is quite fit in the inverter motor coil inspection and other fields requiring high-resolution resistance measurement.
The HT3542 features high-speed test cable anomaly detection and extremely short measurement cycles, with a maximum sorting speed of 2.2 mS, ensuring high-speed and reliable sorting every time.
HT3542 is a compact version of HT3545; HT3545 is high configuration with a higher price.
| HT3542 vs HT3545 | ||
| HT3542 | HT3545 | |
| Measurement range | 20mΩ~10MΩ | 10mΩ~1200MΩ |
| Resolution | 0.1μΩ | 0.01μΩ |
| Accuracy | 0.02% | 0.01% |
| Temperature | – 10℃~60℃ | – 10℃~200℃ |
| Interface | External IO, LAN, RS232 | External IO, LAN, RS232, Analog |
Features
- Thermoelectric compensation (OVC)
- Testing range 0.1μΩ to 1000 MΩ
- Low power resistance measurement
- Test cable open circuit detection function, suitable for OS inspection of automatic production lines
- D/A output
- Automatic test function
- External control I/O port, RS-232 interface, Ethernet port, temperature test interface, especially suitable for supporting automatic equipment to complete automatic test.
Application
- HT3542 single-channel tester is applied to small signal contacts, small fuses, leads, small magnetic parts, motor coils, transformer coils, solenoids, chokes, wiring harnesses, connectors, relay contacts, fuses, resistors, conductive coatings, conductive rubber.
- Suitable to resistance testing requiring high accuracy
- Used to test high speed and multi test point resistances
- In fast sorting of large quantities of electronic components
- For resistance measurement of high, medium and low conductivity resistance materials.
- Fit to characterize the low resistance characteristics of electromechanical components under the low current 100mA and low open voltage 30mV conditions
- T3542 multi-channel resistance tester is special for measurement of three-phase motor coil; inspection of connectors and wiring harness; inspection of relay contacts; inspection of welded parts of battery terminals

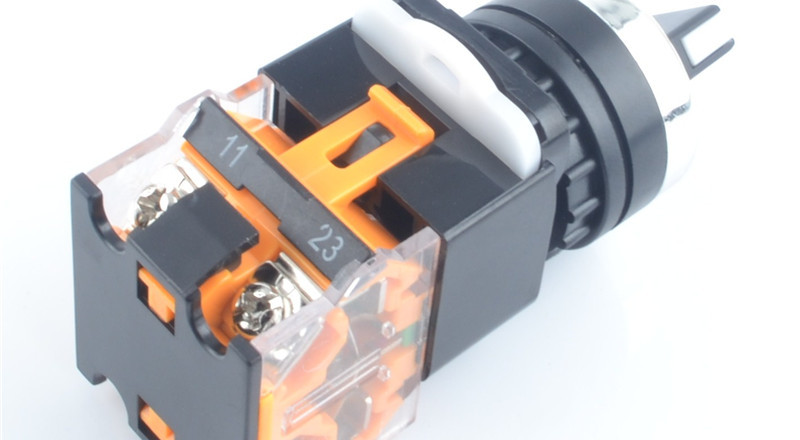

Switch
Relay

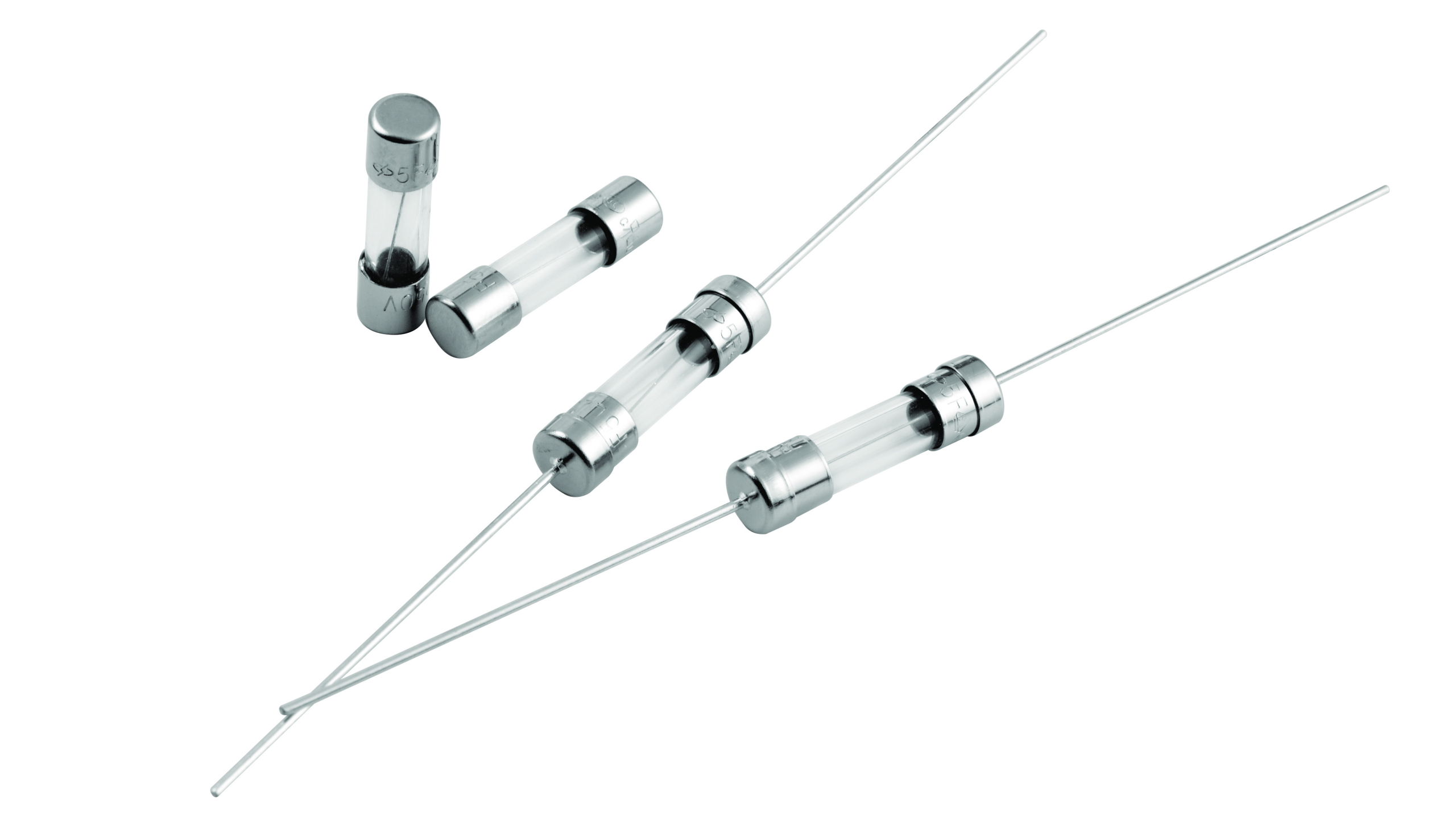

Fuse

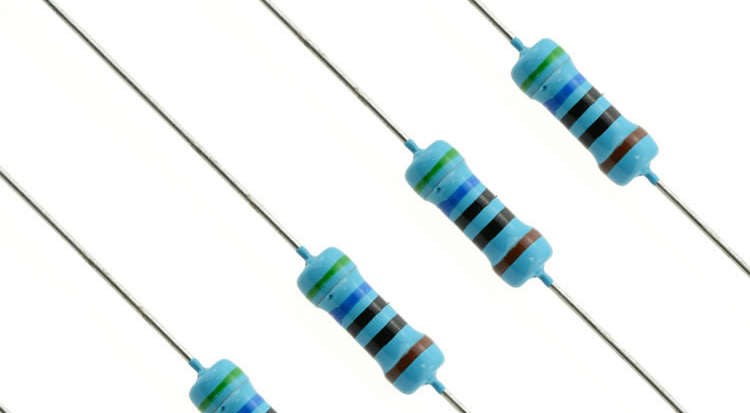

Connection resistors

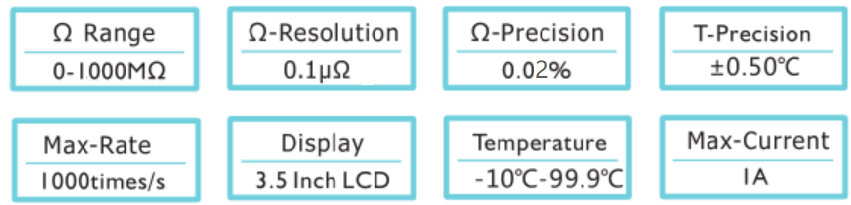

Specification
Specification
| Model | HT3545 | HT3542 |
| Display | 3.5-inch TFT-LCD | |
| Measurement parameters | DC resistance | |
| Resolution | 0.01μΩ | 0.1μΩ |
| Test scope | [LP OFF] ranges from10mΩ~1000MΩ,12 ranges | 10mΩ~10MΩ,9 ranges |
| [LP ON] ranges from 1000mΩ~1000Ω,4 ranges | ||
| Measuring current | Less than DC 1A~1μA [LP ON] DC 1mA~5μA | DC 1A-0.5uA |
| Measuring accuracy | ±0.01%rdg. ±0.001%f.s. | |
| Measuring speed | FAST(2.2ms), MED (50Hz:21ms,60Hz:18ms), SLOW1(102ms), SLOW2(202ms) | |
| Measurement range | 10mΩ/100mΩ/1000mΩ/10Ω/100Ω/1000Ω/10kΩ/ | 20mΩ/200mΩ/2000mΩ/20Ω/200Ω/2000Ω/ |
| 100kΩ/1000kΩ/10MΩ/100ΜΩ/1000ΜΩ | 20kΩ/200kΩ/2000ΚΩ/10ΜΩ | |
| Signal source | 1A DC, Max:5.5V | |
| Temperature | Range:-10℃~99.9℃; Accuracy:± 0.50℃ |
Range:-10℃~60℃ Accuracy:1℃ |
| Humidity range | 23℃，less than 80RH | |
| Calibration | Short-circuit reset for all ranges | |
| Comparator | 10-bin sorting, output signal HIGH/IN/LOW | |
| Data storage | Support with PC software and store in PC | |
| Trigger | Internal, manual, bus trigger | |
| Other | Test lead anomaly detection | |
| Interface | External IO, Analog, LAN, RS-232 | External IO, LAN, RS-232 |
| Power supply | Voltage:100VAC～256VAC; Frequency: 50Hz～60Hz; Rated power:15VA | |

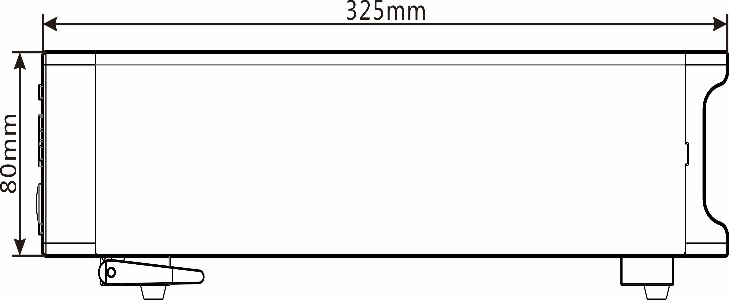

| Size & weight | 325mm*215mm*96.5mm(L*W*H) 2kg | |

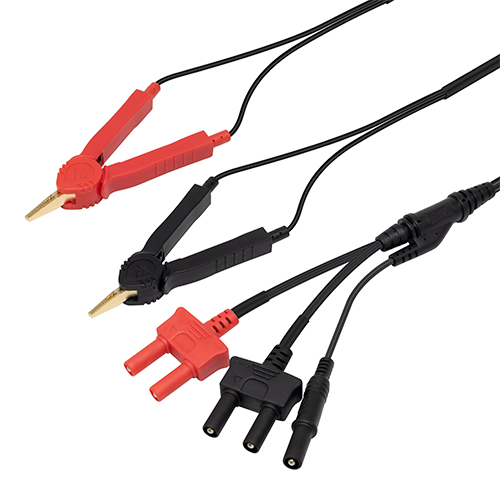

| Accessories | HT9348 temperature probe, PB36 connector, HT9344 test clip, HT9800 communication cable, power cord | |
Specification Selection Table
| Model | Channel No. | Type | Test Accuracy | Resolution | Display |
| HT3545 | Single | Standard | 10mΩ~1000MΩ | 0.01μΩ | 6 1/2 |
| HT3542 | Economy | 10mΩ~10MΩ | 0.1μΩ | 5 1/2 | |
| HT3542-12H | 12-Channel | Functional | 0.1μΩ | ||
| HT3542-24H | 24-Channel | Functional | 0.1μΩ |
