HT3544-12H/24H/2H Multi-channel Resistance Tester
outstanding in anti-interference performance, suitable for supporting automation equipment to complete automatic tes
Overview
The HT3544 multi-channel resistance tester is a new generation product from Hopetech Technology. Each model has two-wire and four-wire switchable modes. They realize maximum two-wire 48-channel resistance test and four-wire 24- channel resistance test. Based on the identical circuit design of the classic model HT3544 resistance meter, HT3544-12 and HT3544-24 is outstanding in anti-interference performance, make it very suitable for supporting automation equipment to complete automatic test.
- Offering 0.02% basic accuracy, 0.1μΩminimum resolution, 1A maximum test current
- With measurable range 0. 1μΩ~3.3MΩ.
- Anti-interference measurement is achieved by protecting the probe used by the port and increasing the test current.
- Using the sorting indicator (option) with loud volume sound to accurately judge whether it is qualified or not at the production site.
- Equipped with RS232/RS485/LANinterfaces and EXT I/O port, HT3544 multi-channel resistance meter is especially suitable for supporting ATE line to complete automatic test.

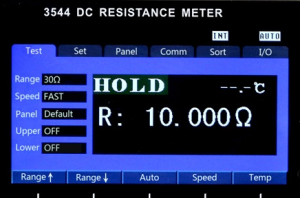

HT3544 multi-channel resistance tester operation interface
Features
- Benchtop HT3544 with compact structure
- Anti-interference design, suitable for complex occasions in electromagnetic environment
- Fast and high-precision testing, rich interfaces
- HT3544 instrument comes standard with RS232/RS485/LANand I/O interface, especially suitable for supporting automatic equipment to complete automatic test.
- HT3544 multi-channel resistance tester is able to work in a single-channel testand multi-channel test;

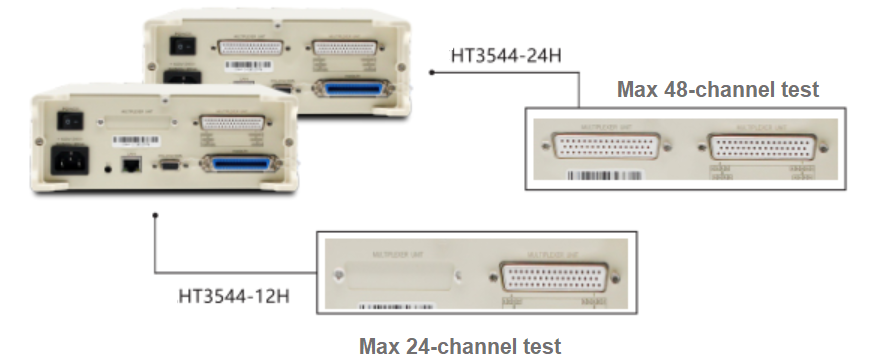

- It hastwo-wire and four-wire switchable mode Each two-wire single-card can test maximum 24-channel and four-wire single-card can test maximum 12-channel; two-wire dual-card can test maximum 48-channel, four-wire dual-card can test maximum 24 -channel;
- Support multi-channel test, up to 24 test points via four terminals
- Rich interface for automation equipment
- Unique 300mA current test
- With automatic test function
- HT3544-12/24H can guarantee test accuracy
- Measure range of 0.1uΩ~3.3MΩ, 0.02% basic accuracy
Application
- HT3544 has wide application in measuring various high, medium and low value resistors; various switch contact resistances; connector resistance; relay line package and contact resistance; transformer, inductor, motor, deflection coil winding resistance; wire resistance; ship, aircraftmetal riveting resistance; printing line and hole resistance, etc,.
- HT3544 multi-channelresistance tester is special for measurement of three-phase motor coil; inspection of connectors and wiring harness; inspection of relay contacts; inspection of welded parts of battery terminals
connector plug & socket
Connection resistors
Printed circuit
Switch contact resistance
Specification
| Model | HT3544-12H | HT3544-24H | HT3544-2H |
| Display | 3.5-inch TFT-LCD display | ||
| Measurement items | ESR, temperature | ||
| 12-channel | 24-channel | 2-channel | |
| Basic accuracy | 0.1%±0.03 reading (3mΩ,30mΩ,3MΩ); 0.05%±0.02 readings(300KΩ);0.02%±0.01 readings (the other ranges) | ||
| Measurement range | 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3kΩ/30kΩ/300kΩ/3MΩ | ||
| Measurement speed | FAST (50Hz:20ms, 60Hz:18ms), medium(50ms), SLOW (200ms) | ||
| Maximum test current | DC 1A, Max:5.5V | ||
| Temperature | Range: -10°C ~60°C Accuracy: ±1°C | ||
| Correction | Short-circuit reset for all ranges | ||
| Comparator | HIGN/IN/LOW sorting,10 bin-out | ||
| Internal data storage | Support with PC software and store in PC | ||
| Trigger | Internal/external/manual trigger | ||
| Signal source | AC 1kHz, Test current: <150mA | ||
| Resolution | 0.1μΩ | ||
| Other functions | temperature correction, power frequency setting | ||
| Interface | External I/O, LAN, RS232, RS485 | ||
| Power supply | Voltage:100VAC～256VAC; Frequency: 50Hz～60Hz; | ||
| Rated Power | 10W | ||
| Dimensions | 325 mm (L) x215mm (W) x 96.5mm (D), without sleeve | ||

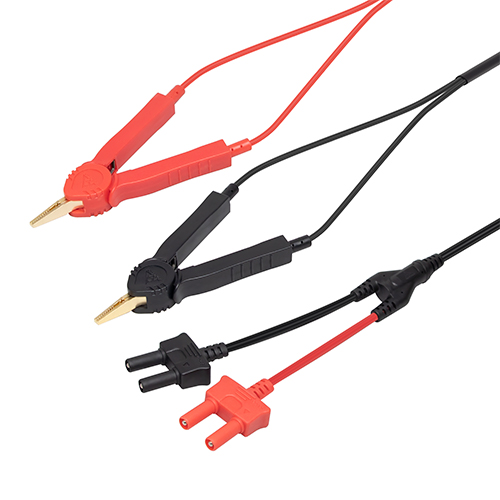

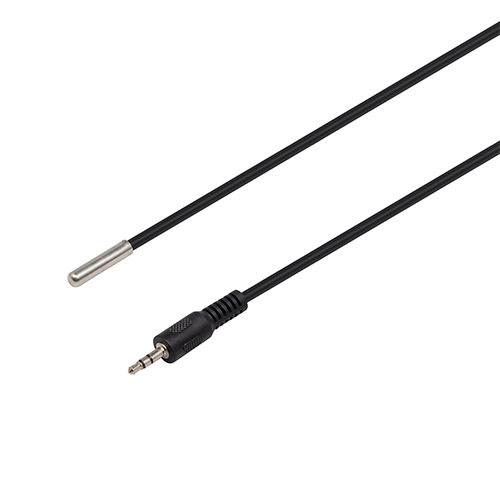

| Accessory | Standard:HT9363A, HT9348, power cord | ||
| Weight | 2kg | ||
Specification Selection Table
| Model | Channel No. | Design | Range | Accuracy |
| HT3548 | Single | Handheld |
3mΩ~3MΩ |
0.02%±0.01 (reading) |
| HT3544 | Benchtop | |||
| HT3544-12H | 12-channel | |||
| HT3544-24H | 24-channel | Benchtop | ||
| HT3544-2H | 2-channel | Benchtop |

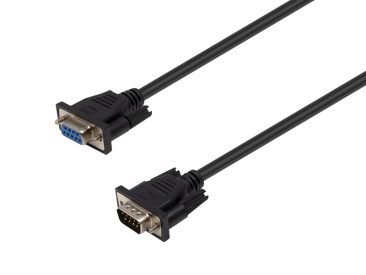

Accessories
