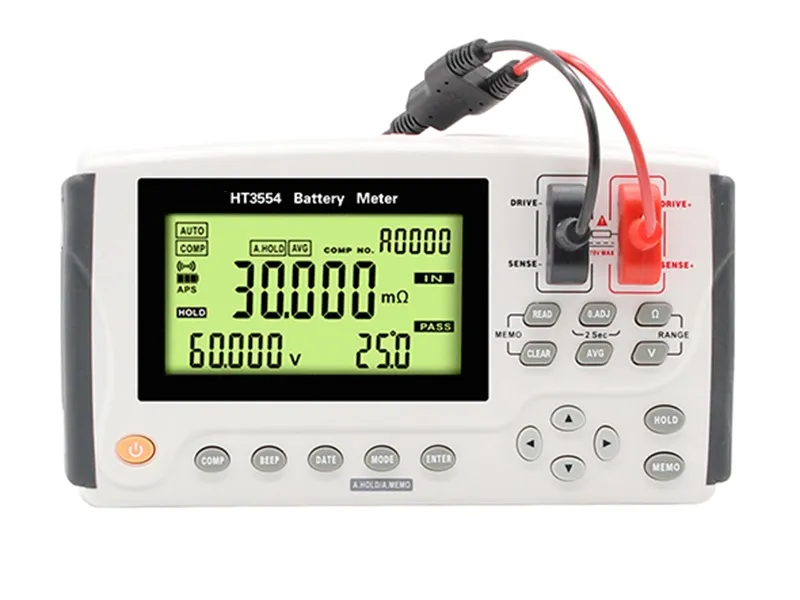

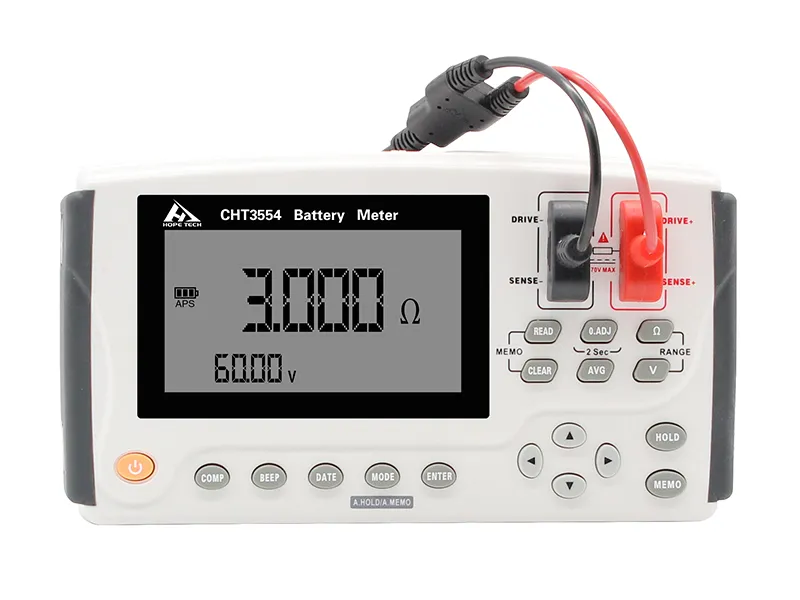

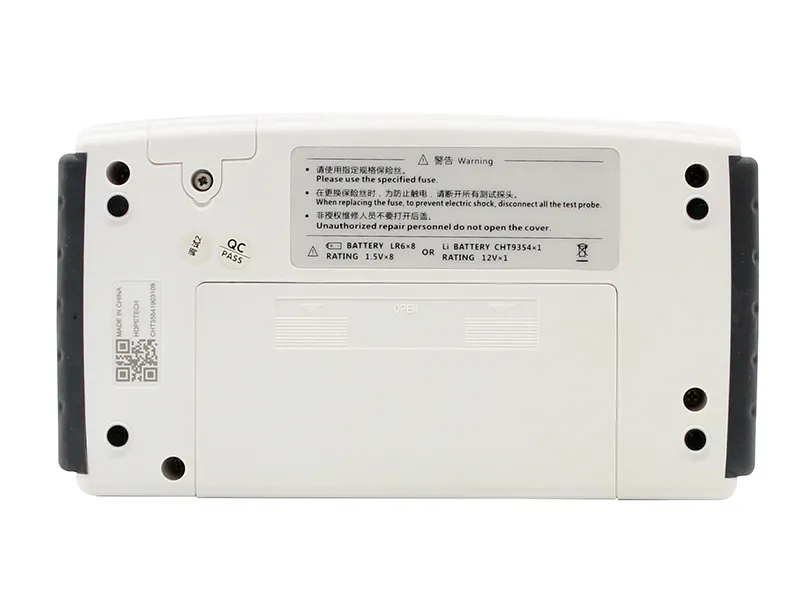

HT3554A/HT3554B/HT3554D Handheld Battery Tester 100V~1000V
ht3554a/ht3554b/ht3554d-handheld-battery-tester-100V~1000V
Overview
HT3554A/B/D Handheld Internal Resistance Battery Testers are Hopetech’s key high-speed tester for accurate battery internal resistance and voltage test in the battery industry.
As a handheld tester, the 3 models are lighter and smaller than desktop instruments, but their accuracy and speed is comparable to the benchtop tester since they use the same circuit design of the classic HT3563.
Powered of lithium battery and dry battery, HT3554A/B/D can still work in the harsh field and air transport limited areas to facilitate the use of dry-cell battery.
HT3554 has a minimum resolution of 0.0001mΩ, maximum voltage and auto trigger voltage of 1000V and fastest test speed is 100mS.
Feature
- HT3554A/B/D is a precision tester for ordinary batteries. Handheld design, lighter and smaller, but their accuracy and speed comparable to the bench top tester.
- Ultra-wide test range, voltage test range up to 1000V (HT3554D only)
- Test speed faster than HT3554
Application
- Inspection of high-voltage battery pack and battery module
- High-speed mass production inspection of various batteries
- For large, medium and small (low impedance) component inspection and high-volume production inspection
- Special fuel cell stack inspection
- Research and development measurement for batteries
- Simultaneously check internal resistance (IR) and battery voltage (OCV) at high speed
- Fit for various types of battery in the market such as: lead-acid batteries, nickel-metal hydride batteries, lithium batteries, nickel-chromium batteries, lithium batteries
Specification
| Model | HT3554A | HT3554B | HT3554D | |
| Display | 4.3-inch TFT-LCD display | |||
| Measurement items | ACR, DCV, temperature | |||
| Internal resistance | Accuracy | 0.50% | ||
| Range | 0.0001m Ω ~ 31.000Ω | |||
| Voltage | Accuracy | 0.02% | ||
| Range | 0.01mV ~ 100.000V | 0.01mV ~ 300.000V | 0.01V ~ 1000.00V | |
| Temperature | Accuracy | 1 °C | ||
| Range | – 10 °C ~ 60°C | |||
| Signal source | AC 1kHz; open circuit voltage: <5V; Test current: <10mA | |||
| Range | Resistance: 3mΩ/30mΩ/300mΩ/3Ω/30Ω | |||
| Auto and manual test mode in 5-level range | ||||
| Sampling rate | 20 meas/sec,3 meas/sec | |||
| Correction | Short-circuit reset for all ranges | |||
| Comparator | FAIL/ PASS | |||
| Internal data storage | Store up to 2400 set test data (upgradable to 4800 set) | |||
| Trigger | Internal/auto trigger | |||
| Interface | USB, EXPORT (port execution hold function) | |||
| Power supply | 12V/2500mAh lithium battery, AA (LR6) Alkaline Batteries x 8 | |||
| Maximum rated power | 4VA | |||

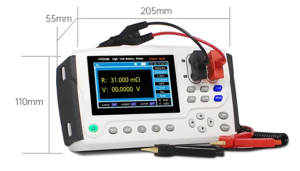

| Dimensions | 205 mm (L) x110mm (W) x 55mm (D), without sleeve, weight:0.81kg | |||

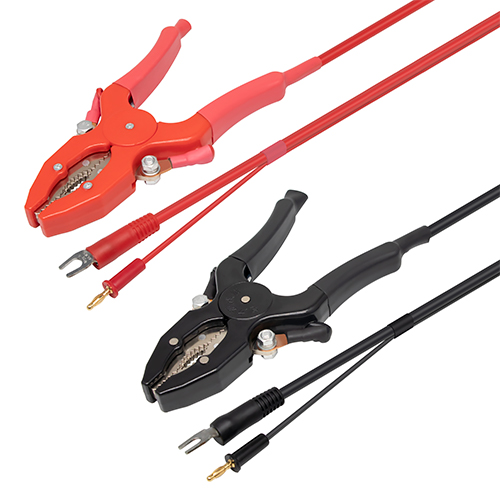

| Accessory | HT9363B,HT9371,HT9348，USB mini cable,charger,0370 belt | |||
Specification Selection Table
| Model | Resistance accuracy | Resistance range | Resistance accuracy | Voltage range | Performance characteristics | |
| HT3554 | ±1% | 0.001mΩ-3.100Ω | ±0.05% | 100μV～60V | Special for online measurement for UPS batteries | |
| HT3554A | ±0.5% | 0.0001mΩ-30.000Ω | ±0.02% | 10μV~100V | Handheld design, lighter and smaller, but their accuracy and speed comparable to the benchtop tester. | |
| HT3554B | 10μV~300V | |||||
| HT3554D | 10μV~1000V |
