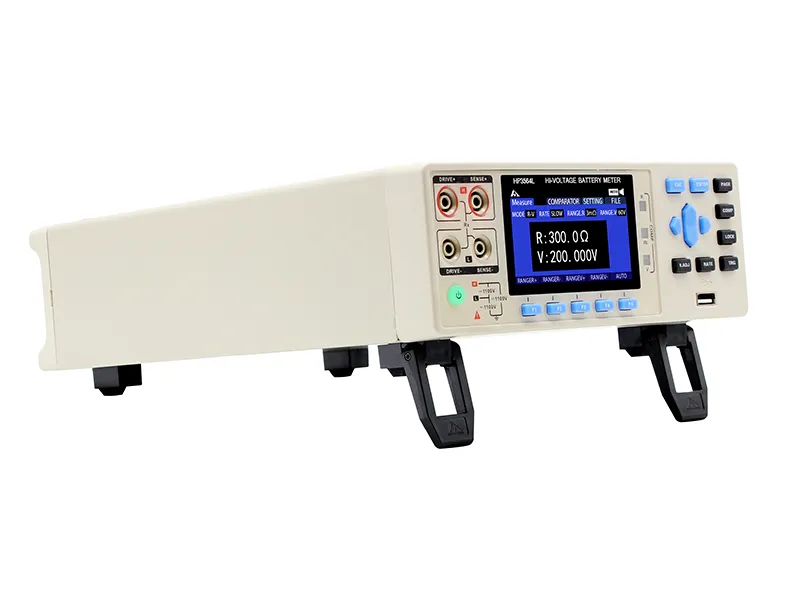

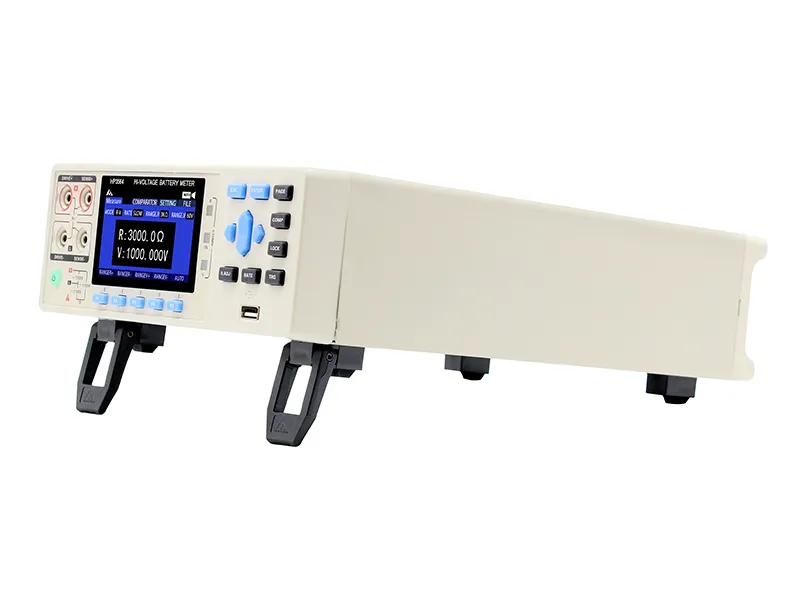

HT3564/L/H series battery tester
Suitable for internal resistance and voltage testing of large battery packs and clusters
Overview
HT3564 series battery tester is a high-performance tester that combines ultra-high voltage testing range and high-precision internal resistance testing, developed based on years of rich experience in voltage and internal resistance testing of lithium batteries by Hopetech, targeting the high voltage internal resistance testing needs of large battery packs and clusters. This product has high resolution, good stability, short testing cycle, exquisite appearance, powerful functions, rich interfaces, and is suitable for product development and automated production lines.
Feature
- Internal resistance resolution 0.1μΩ, test range 3.1k Ω
- Ultra-wide voltage range 10 μV-1500V (HT3564H only)
- Arc suppression technology, super strong anti-static design, improves testing safety
- Standard rich interfaces suitable for ATE use
- Strong anti-interference ability
- Automatic battery testing
Application
- Inspecting high-voltage battery packs and battery modules
- High-speed production inspection of various batteries
- Simultaneously check the internal resistance (IR) and battery voltage (OCV) at high speed
- Inspecting energy storage battery packs
- Used for research, development, and measurement of batteries
Specification
| Model | HT3564L | HT3564 | HT3564H | |
| Parameter | AC internal resistance (ACR), DV voltage (DCV) | |||
| Internal resistance | Accuracy | 0. 5%(3 m Ω);0. 5%(30m Ω);0. 3% (≥300m Ω) | ||
| Range | 0 0001m Ω ~ 310 00Ω | |||
| Voltage | Accuracy | 0.01% | ||
| Range | 0.00001V ~400.000V | 0.00001V ~ 1000.00V | 0.00001V ~ 1 500.00V | |
| Signal source | Current frequency: 1 k Hz±0.2Hz; open voltage: <25V; test current: < 100mA | |||
| Range | 3 m Ω, 30m Ω, 300m Ω, 3Ω, 30Ω, 300Ω, 3kΩ, 7 ranges, manual and auto | |||
| Test speed | Super-fast:100 times/s ，fast:50 times/s，middle:20times/slow:3 times/s | |||
| Correction | Short correction in full range | |||
| Comparator | 30 groups record, 4 bins sorting, bin count | |||
| Trigger mode | Internal trigger (INT), manual trigger (MAN), external trigger (EXT), Bus trigger (BUS), auto trigger (AUT) | |||

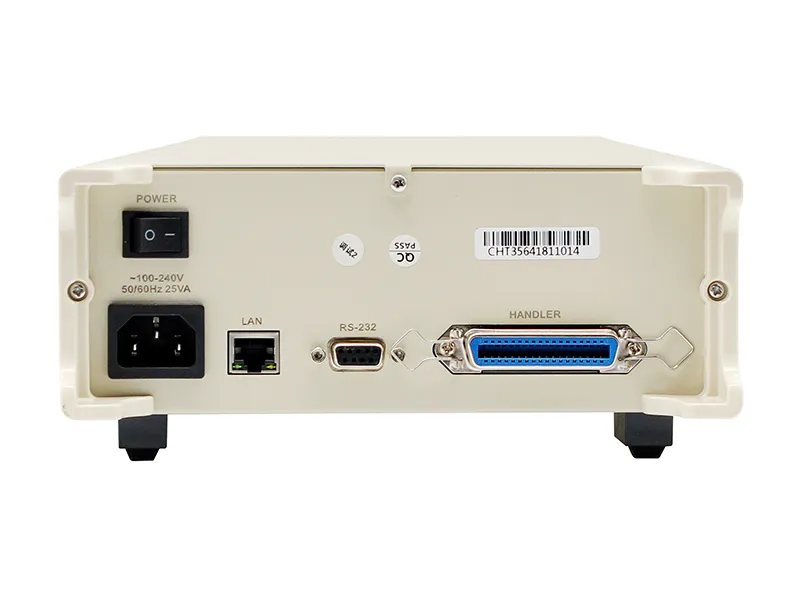

| Interface | RS232/485, LAN, I/O | |||
| Power | Voltage: 100VAC ~256VAC; frequency: 50Hz ~60Hz; rated power:1 5VA | |||
| Dimension and weight | 325 mm*215 mm*96. 5 mm;3 kg | |||
