IV Automatic Test Tooling HT1040X Series
The HT1040 series is used in the IV automatic test system. By adopting the Kelvin four-wire test principle, it can test resistance online, reducing resistance loss during the testing process and making the IV power test results more accurate and valid. This capability helps minimize power loss caused by abnormal equipment. The resistance of the male and female headers of the online test fixture is recorded in real time with an RFID chip, determining whether it meets the qualification standards. This ensures a one-to-one correspondence with the components and uploads the data to the MES system, enabling traceability of the entire IV testing process and providing big data analysis for the enterprise.
Overview
The HT1040 series is used in the IV automatic test system. By adopting the Kelvin four-wire test principle, it can test resistance online, reducing resistance loss during the testing process and making the IV power test results more accurate and valid. This capability helps minimize power loss caused by abnormal equipment. The resistance of the male and female headers of the online test fixture is recorded in real time with an RFID chip, determining whether it meets the qualification standards. This ensures a one-to-one correspondence with the components and uploads the data to the MES system, enabling traceability of the entire IV testing process and providing big data analysis for the enterprise.
Features
- By Adopt Kelvin four-wire testing principle, we significantlyreducing the drift of IV power test results caused by two-wire testing.
- RFID chip technology combined witha high-precision low-resistance tester, enables data tracking and real-time resistance monitoring.
- By integrating with the MES data system, we can achieve traceability throughout the entire IV testing process and provide enterprises with big data analysis.
- It can be applied to all specifications of PV modules.
- Adopt a cable – free design and can customize solutions according to the actual needs of customers.
- Compatible with robotic systems for automatic loading and unloading, eliminating the need for manual labor to achieve full automation.
Application

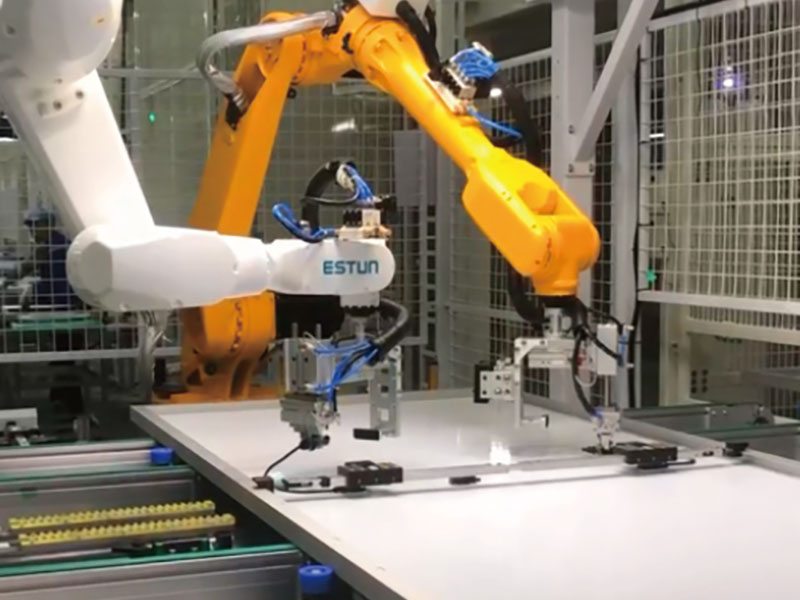

HT1040-44 jig and fixture can be perfectly matched with robotic arm to automate the loading and unloading process, eliminating the need for manual labor and achieving automated production. Compared to conventional tooling, the automatic HT1040-44 test results are more stable.
The HT1040-44 jig and fixture can be seamlessly integrated with a robotic arm to automate the loading and unloading processes, eliminating the need for manual labor and achieving full automation in production. Compared to conventional tooling, the automatic HT1040-44 test results are more consistent and stable.
