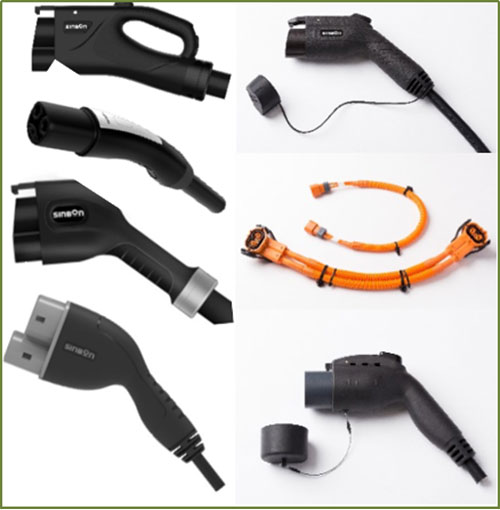

Jiangyin SINBON Electronics ( https://www.sinbon.com/) is mainly engaged in charging guns for new energy vehicles. Sinbon uses our high-voltage wire harness tester to test the quality of charging guns.
Sinbon measurement items are including continuity, short circuit test, high voltage continuity test, high current continuity test, insulation, withstand voltage, NTC thermistor test, solenoid valve grounding test.

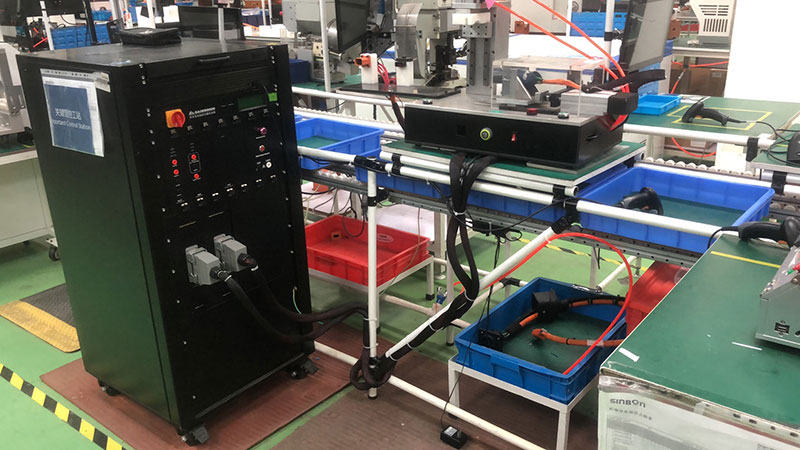

custom-made cable harness tester
The integrated cable harness tester DP6000 has a wide application area in new energy battery, CCS, FPC, aviation, aerospace, military, wiring harness, connectors, testers in serial are suitable for more industries.
DP6000 is medium voltage test system and has following specification:
- DC 3000V, AC 2000V
- One stop testing for multiple testing projects
- Upper limit of insulation resistance test 50GΩ
- Resolution of four wire resistance reaches 0.1uΩ
- Support mixed two wire and four wire measurement, higher measurement accuracy and faster speed
- Test point in distributed structure, 32 points per test card
- The serial tester can be expanded to over 20000 points and more
- Test items: (OS, 2-wire resistance, 4-wire resistance, NTC resistance, insulation resistance, AC withstand voltage, DC withstand voltage)
- Self-learning loop quickly generates test file groups
- Scan code to test custom printed labels
- Customizable plugin MES docking
- User permission management, three-level management settings
- Any point can be edited, and test files can be exported and imported
- Data reports support exporting in CSVXLSXPDF and WORD formats
- Serial mode is suitable for more industries
