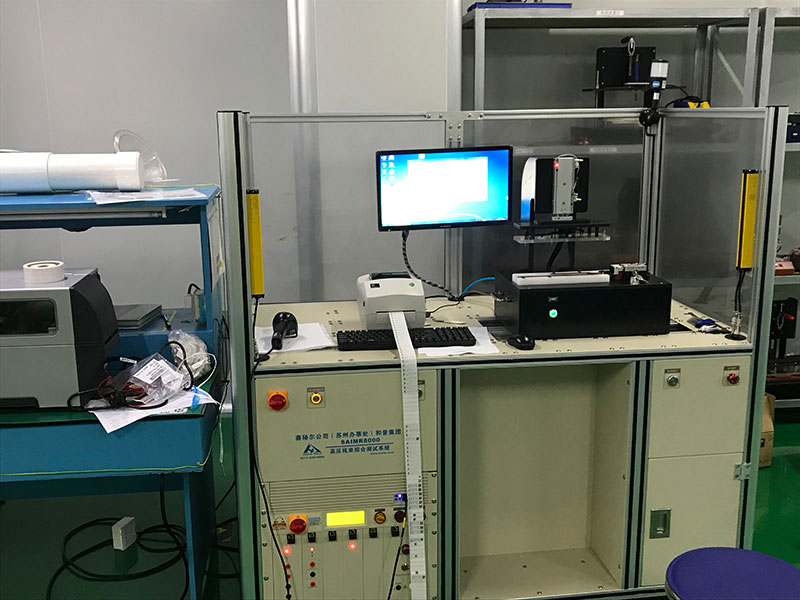

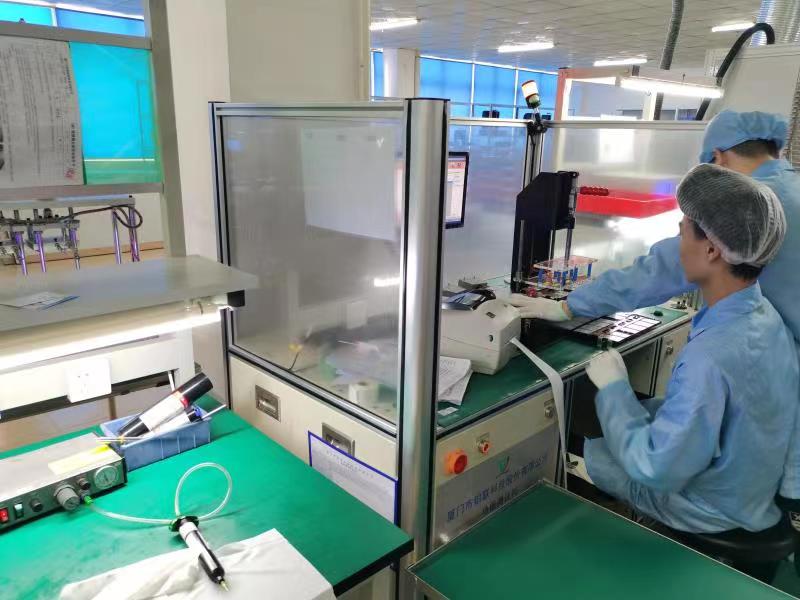

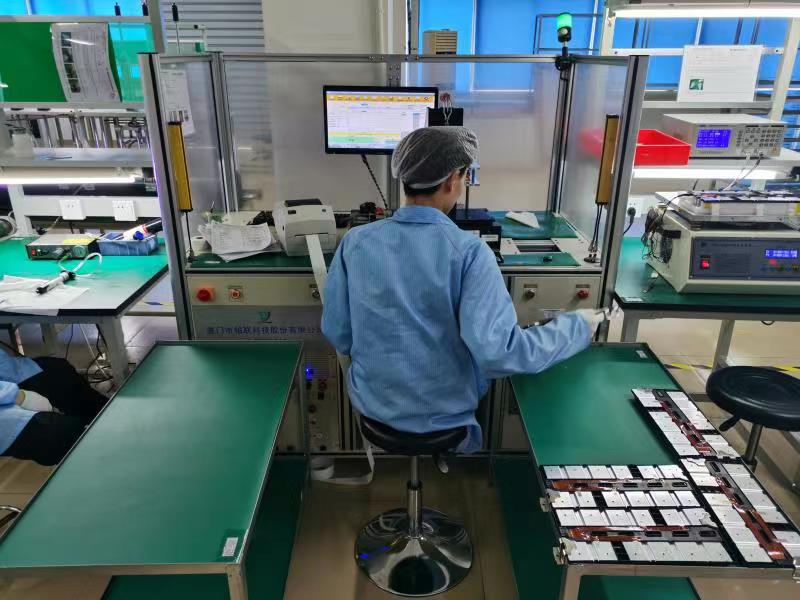

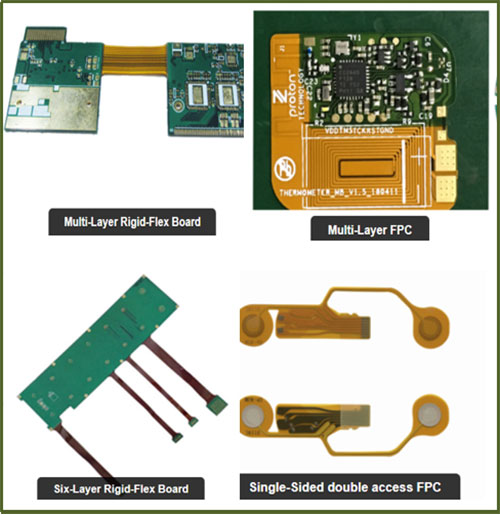

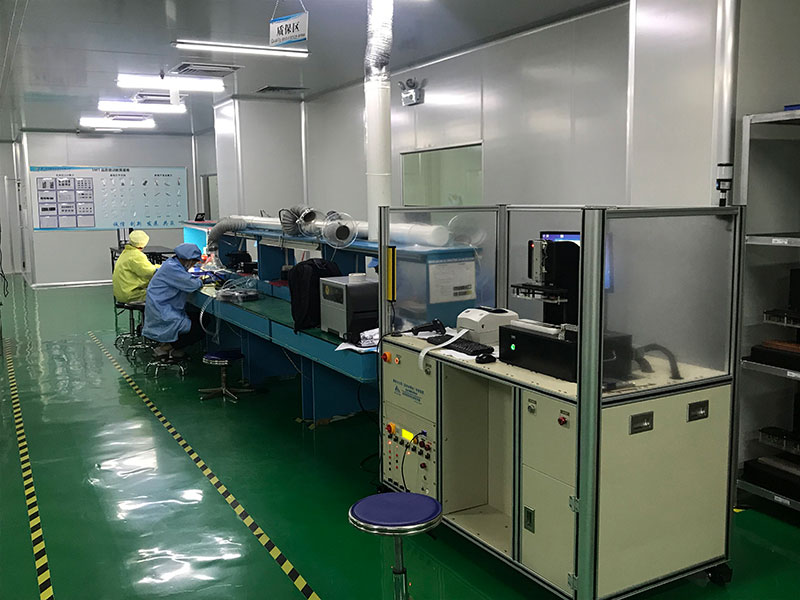

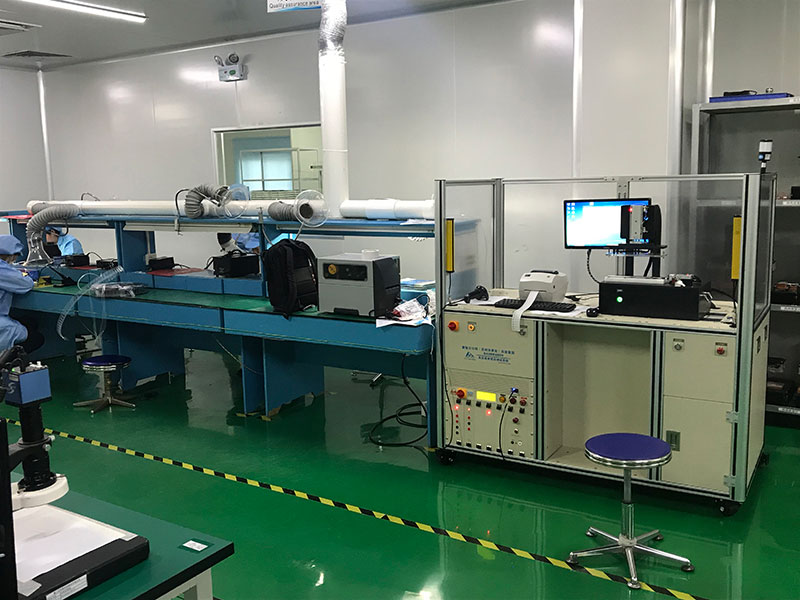

Xiamen FPC Technology(http://en.flexfpc.com/) produces FPC (flexible PCB board), which requires conducting，continuity, and short circuit tests, high voltage conducting tests, high current conducting tests, insulation, and voltage withstand tests, and NTC thermistor tests.
Hopetech’s high-voltage wire harness tester integrates these tests in one system to ensure efficient and accurate testing. We help customers to save test time and better control product quality and greatly improve production efficiency.

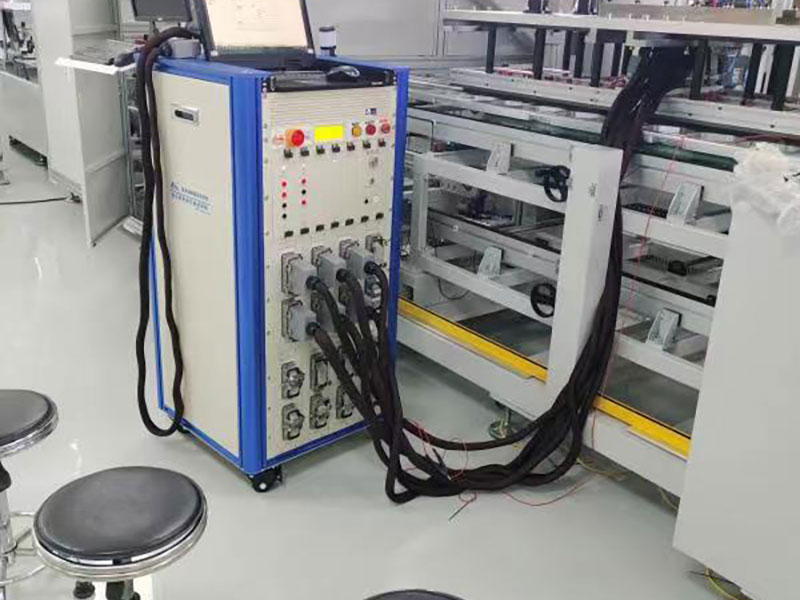

DP8000 high voltage harness tester 4000V DC/3000V AC
The DP8000 series high-voltage harness testing equipment supports four wire hybrid testing, integrating precise OS testing, conduction testing, DCR testing, LCR testing (optional), insulation testing, AC/DC hipot voltage testing, and ESD testing.
Widely used in the rail transit industry and nuclear energy industry for high-voltage wire harnesses, high-voltage connectors, automotive PDU control box testing, AC/DC charging gun testing, and AC/DC charging dock testing products.
Support mixed testing of two and four wire measurement
Low voltage programmable source test signal: 0~40V/0~2A
Minimum resolution of on resistance is 10 μΩ
Patrol function
Four-wire anomaly detection
Network self-learning
Database and MES integration
Report printing and editing
The maximum range of insulation testing is ≥ 1G
Optional LCR testing module (0~100kHz)
Optional airtightness testing module
Optional solenoid valve testing module
Ordinary type (DP8000): 4000V DC/3000V AC
High voltage type (DP8000H): 5000V DC/5000V AC
Nuclear cable type (DP8000N): insulation>100G
