HT3545 Precision DC Resistance Tester is one of the highest-precision DC resistance testers in the industry.
HT3545 precision resistance tester is suitable for small signal contacts, small fuses, leads, small magnetic parts, motor coils, transformer coils, solenoids, chokes, wiring harnesses, connectors, relay contacts, fuses, resistors, conductive coatings, conductive rubber.
Featured function—cable detection
Circuit principle
Each test end is divided into 2 test lines, and a constant current source is added between the test lines. When the DUT is short-circuited at the test end, the current source outputs a low level, otherwise it outputs a high level. Use in this way to check whether the test object or test line is in good contact.
Application example

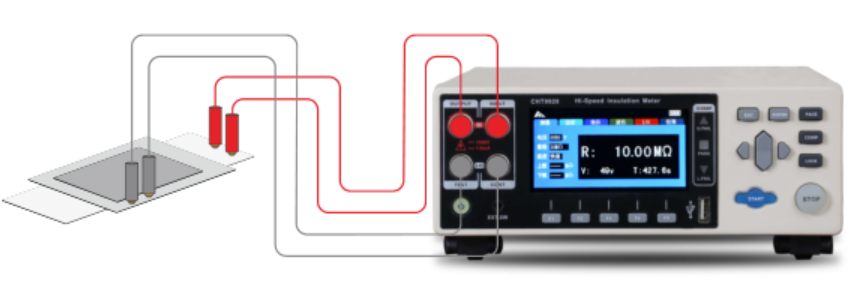

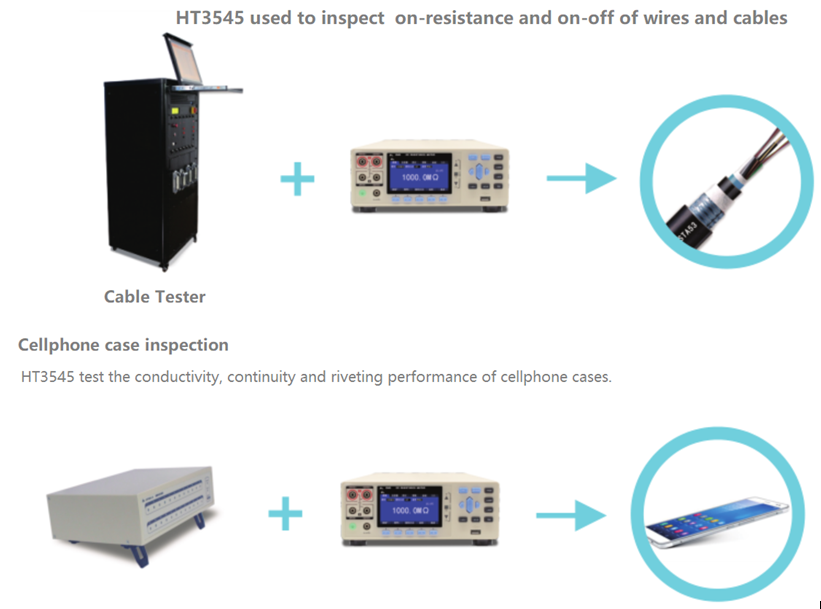

Broken test leads and poor contact with the test object will lead to misjudgment of the insulation test, which may cause defective products to flow into the market. In order to prevent this kind of situation, we have a standard contact check function, which can notify the disconnection or poor contact to prevent the above situation.
Featured function—PCB board test

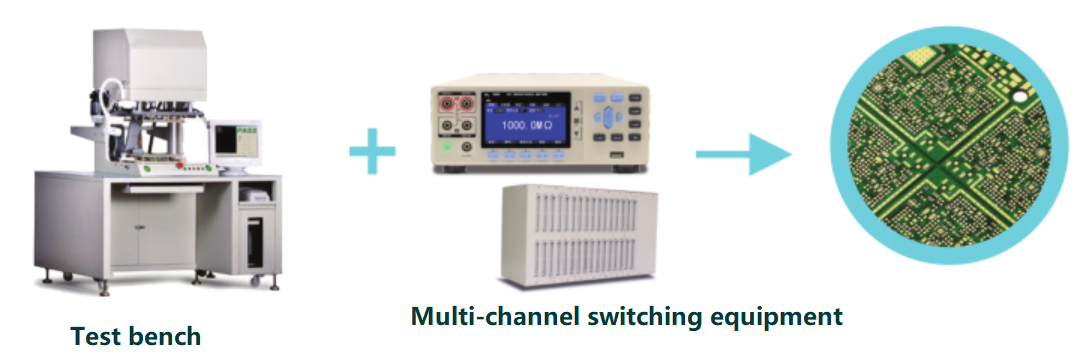

For some PCBs with high requirements in aerospace, automotive electronics, etc., it is required to test their vias and traces. With the support of multi-channel switching equipment, HT3545 precision resistance tester offers its scanning and switching at the speed of 2ms per channel.
